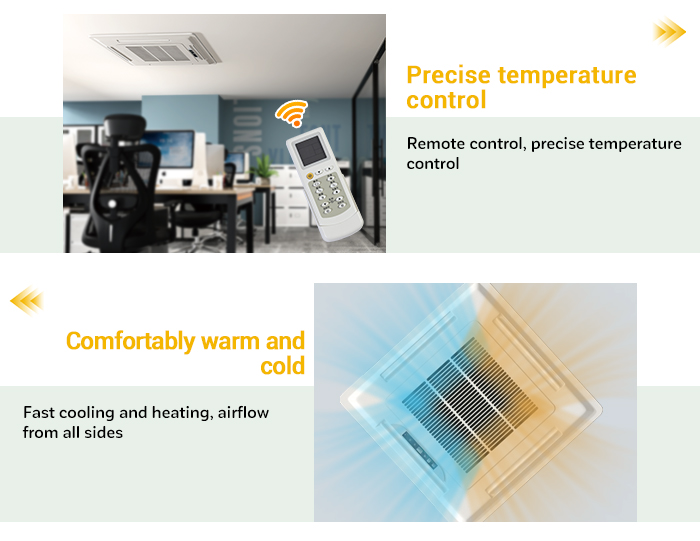

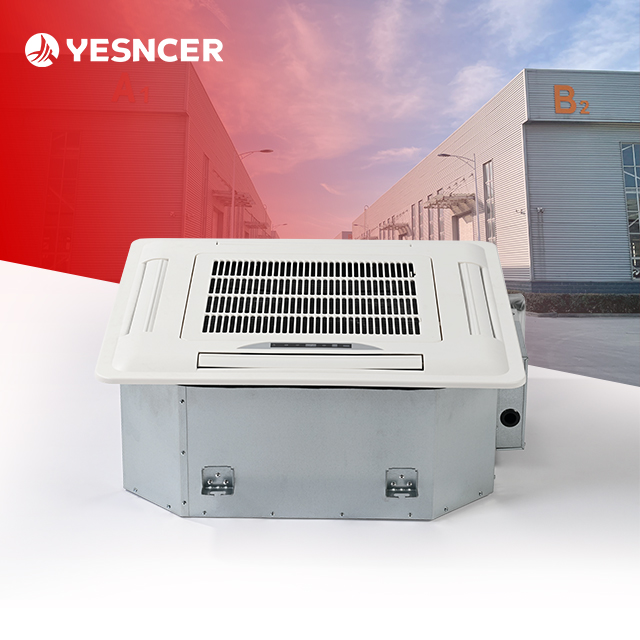

Our 4-way cassette fan coil unit offers both precise temperature control and a comfortable indoor climate. With the included remote controller, users can easily adjust settings to achieve accurate temperature regulation. The ceiling-mounted design delivers fast cooling and heating, while the 360° all-direction airflow ensures even distribution of conditioned air. This chilled water fan coil unit is an ideal solution for offices, hotels, schools, and other commercial spaces where quiet operation and energy efficiency are essential.

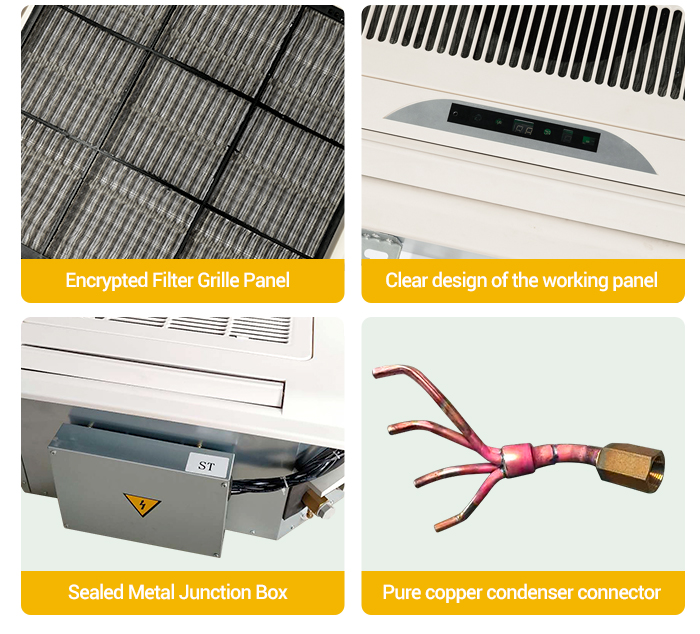

This ceiling-mounted fan coil unit is designed with high-quality components to ensure efficient cooling, heating, and long-lasting performance:

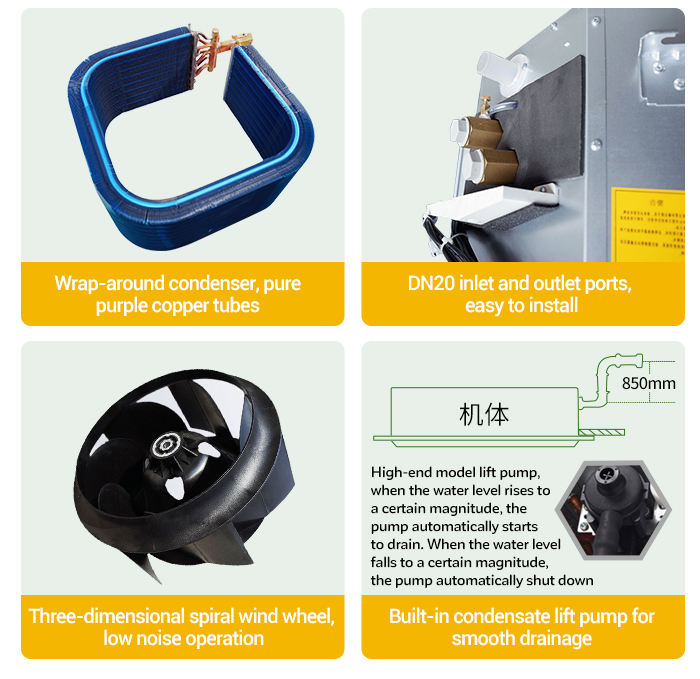

Wrap-around condenser with pure copper tubes provides excellent heat exchange efficiency and durability.
DN20 inlet and outlet ports make installation faster and easier, reducing setup time.
Three-dimensional spiral wind wheel ensures powerful airflow with low-noise operation, creating a quiet and comfortable indoor environment.
Built-in condensate lift pump automatically drains water for smooth operation, preventing overflow and ensuring reliability in continuous use.
With these advanced features, this chilled water fan coil unit is ideal for hotels, offices, schools, and residential projects that demand stable performance and energy efficiency.

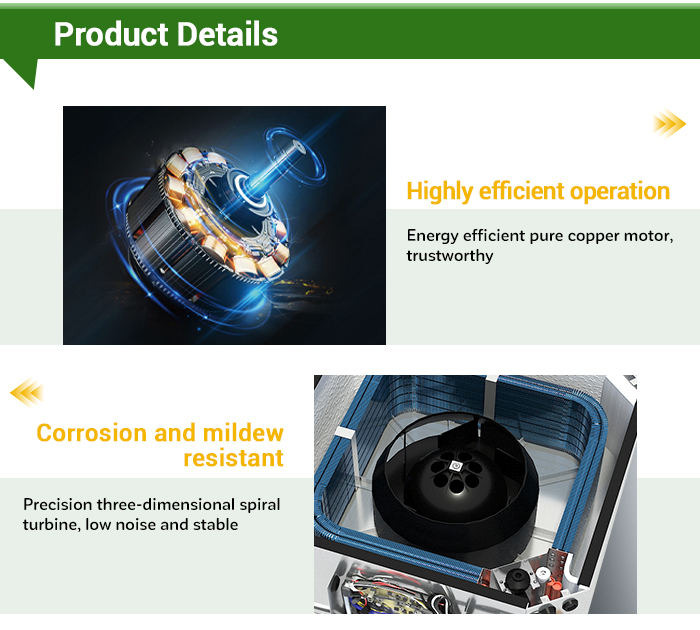

The low-noise three-speed capacitor motor of well-known domestic brands is adopted, with imported precision ultra-low-noise rolling bearing.
Three-dimensional spiral wind blade ensures wind volume and thinner shape, and irregular wind blade pitch greatly reduces operating noise.
The pipe of water collecting head adopts forged brass structure, which is reliable and durable.
Circular heat exchanger design, wind uniformity, seamless copper tube and new high-efficiency corrugated double curved open window.
Product parameters
|
Model
|
FP-34
|
FP-51
|
FP-68
|
FP-85
|
FP-102
|
FP-136
|
FP-170
|
FP-204
|
FP-238
|
|
|
Cooling Ca.(kw)
(Water in 7℃） |
high
|
1.215
|
1.935
|
2.52
|
3.105
|
3.735
|
4.635
|
6.3
|
7.29
|
8.01
|
|
Heating Ca.(kw)
(Water in 60℃） |
high
|
1.53
|
2.295 | 2.88 | 3.69 | 4.365 | 5.31 | 7.38 | 8.325 | 9.045 |
|
Air flow (m³/h)
|
high
|
340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
|
power input (W)
|
34 | 50 | 58 | 72 | 92 | 126 | 128 | 152 | 198 | |
|
Noise dB (A)
|
37 | 39 | 41 | 43 | 45 | 46 | 47 | 49 | 52 | |
|
Weight(kg)
|
21 | 22 | 23 | 30.5 | 31 | 31.5 | 38.5 | 39.5 | 40.5 | |
|
power Supply
|
220V~240/1 ph/50HZ
|
|||||||||
| SERVICE WE SUPPLY | |||||
| The CAD design drawing plan of the project | We will following the goods delivery untill you are available | ||||
| We will send you the test report before shipping | Supply the installation and maintanence instruction maximum energy output online |
||||
| The free spare parts available | If any quality problem of product, we can refund you | ||||
| You can get us at any time, after order placed | Three years' warranty | ||||
